Figure 1
Experimental Vessel and Test
Results
(Water / Oil
Separation)

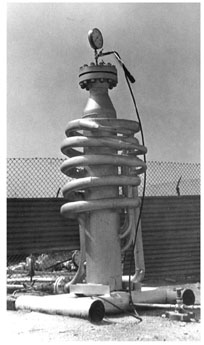

Experimental vessel connected to an oil well
YAZ - DEHYDRONE EXPERIMENTAL VESSEL
AND TEST RESULTS ( Water / Oil Separation)
Sample No. |
Entering Salt(ptb) |
Entering Water
Content |
Exiting Salt(ptb) |
Exiting Water Content |
Loss in
Salt(ptb) |
Desalting / Dewatering |
| 1 |
2100 |
2.1% |
230 |
0.2% |
1870 |
89.0% |
| 2 |
2150 |
2.2% |
200 |
0.2% |
1950 |
90.6% |
| 3 |
2010 |
2.0% |
280 |
0.3% |
1730 |
86.0% |
| 4 |
2050 |
2.0% |
160 |
0.2% |
1890 |
92.2% |
| 5 |
2080 |
2.1% |
230 |
0.2% |
1850 |
88.9% |
| 6 |
20650* |
20.6% |
190 |
0.2% |
20460 |
99.0% |
| 7 |
1920 |
1.9% |
230 |
0.2% |
1690 |
88.0% |
| 8 |
22420* |
22.4% |
50 |
0.05% |
22370 |
99.8% |
| 9 |
2020 |
2.0% |
270 |
0.3% |
1750 |
86.6% |
| 10 |
2010 |
2.0% |
190 |
0.2% |
1820 |
90.5% |
| 11 |
1980 |
2.0% |
40 |
0.04% |
1940 |
98.0% |
| 12 |
2010 |
2.0% |
30 |
0.03% |
1980 |
98.5% |
| 13 |
2050 |
2.1% |
240 |
0.2% |
1810 |
88.3% |
| 14 |
1991 |
2.0% |
230 |
0.2% |
1760 |
88.4% |
| 15 |
2060 |
2.1% |
260 |
0.3% |
1800 |
87.4% |
* High Salinity ( Water Content ) may be due to water slug
caught by sampler.
Average Desalting ( De-watering )
91.4 %
Average
Remaining Water
.
..0.2 %
Inlet Pressure
...
.650
psi
Outlet Pressure
...
..630
psi
Flow-rate
......
.4000
bpd
G.O.R
.......
800 SCF/bbl.
Formation Water
Salinity...................................175,000ppm
-
