Figure3

Yaz-Dehydrone Separation Process

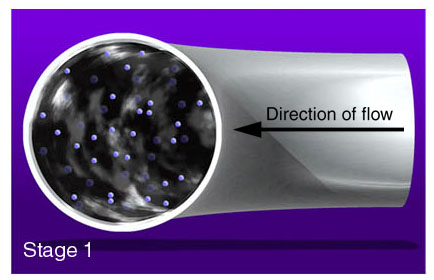

Water droplets dispersed in the oil entering the vessel.

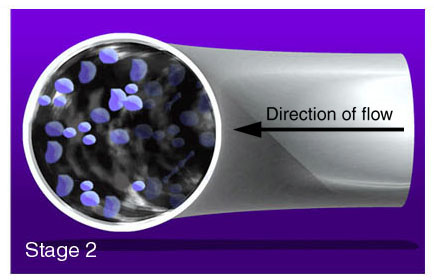

Water droplets are forced together towards the exterior portion of the flow while moving in the spiral pipe due to centrifugal force.

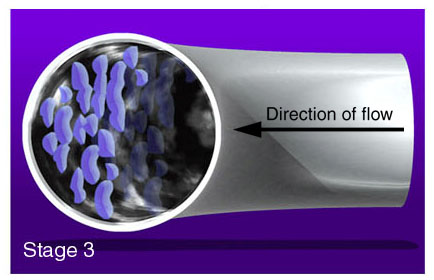

Separated water droplets coalesce together with further motion and centrifugal force within the pipe.

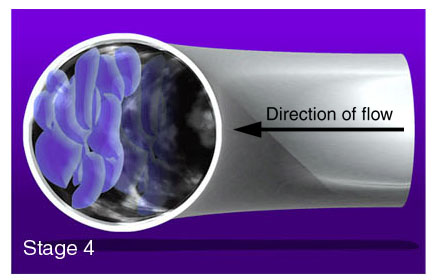

separated water moves on the exterior portion of the flow and further coalescing occures.

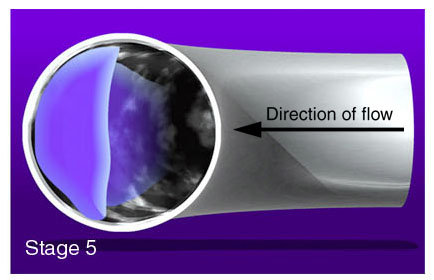

Water completely separates and travels on the exterior portion of the flow.

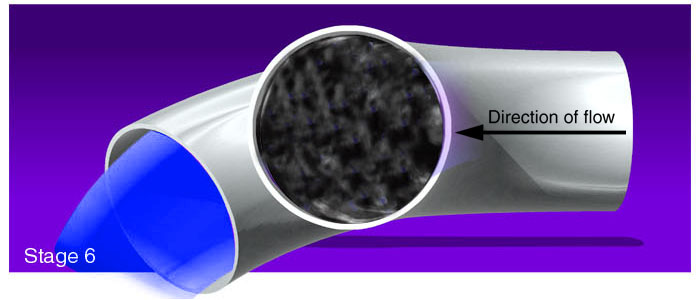

Separated water is directed to the main body of the vessel for discharge while the clean oil continues it's path to it's destination.
