FIGURES & TEST RESULTS

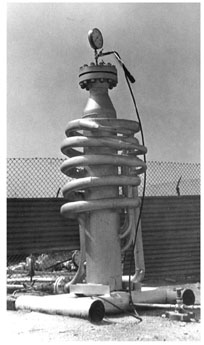

YAZ - DEHYDRONE EXPERIMENTAL VESSEL AND TEST RESULTS ( Water / Oil Separation)

 Sample
No.
 Entering
Salt(ptb)
 Water
Content
 Exiting
Content
 Water
Content
Loss
in Salt(ptb)
Desalting
Dewatering
 1 2100 2.1% 230 0.2% 1870 89.0%
 2 2150 2.2% 200 0.2% 1950 90.6%
 3 2010 2.0% 280 0.3% 1730 86.0%
 4 2050 2.0% 160 0.2% 1890 92.2%
5 2080 2.1% 230 0.2% 1850 88.9%
6 20650* 20.6% 190 0.2% 20460 99.0%
7 1920 1.9% 230 0.2% 1690 88.0%
8 22420 22.4% 50 0.05% 22370 99.8%
9 2020 2.0% 270 0.3% 1750 86.6%
10 2010 2.0% 190 0.2% 1820 90.5%
11 1980 2.0% 40 0.04% 1940 98.0%
12 2010 2.0% 30 0.03% 1980 98.5%
13 2050 2.1% 240 0.2% 1810 88.3%
14 1991 2.0% 230 0.2% 1760 88.4%
 15 2060 2.1% 260 0.3% 1800 87.4%
* High Salinity ( Water Content ) may be due to water slug caught by sampler.
Average Desalting ( De-watering ) ……………………91.4 %
Average Remaining Water …………………….………..0.2 %
Inlet Pressure……………………………………...…….650 psi
Outlet Pressure……………………………………...…..630 psi
Flow-rate…………………………………………......….4000 bpd
G.O.R…………………………………………….......……800 SCF/bbl.
